$6,099.00

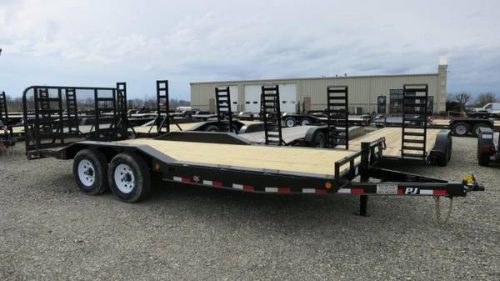

PJ Trailers 20′ x 6″ Channel Super-Wide Trailer – $6099

  • City: Columbus
  • State: Ohio
  • Country: United States
  • Listed: June 19, 2018 5:31 am
  • Expires: This ad has expired
PJ Trailers 20' x 6

Description

b6: 6″ Channel Super-Wide
j: BP 2 5/16″ Adjustable (14,000 lb.)
20: 20ft
72bs: 2 – 7,000# (Dexter) Electric / Spring
j: 2′ Dovetail w/ 4′ Heavy Duty Fold-up Gate
k: Black Powder Coat

ONLINE PRICES ARE CASH OR OHIO CHECK ONLY.

Standard Features

14,000 lb. G.V.W.R.
7,000 lb. x 2 G.A.W.R.
2 5/16″ Ball Adjustable Coupler
Safety Chains
1 – Drop Leg Jack (10,000 lb.)
2 – Dexter E- Z lube Brake Axles (7,000 lb.)
6 Leaf Slipper Spring Suspension
4 – 16″ White Spoke Wheels
4 – Provider 235/80R16 Radial Tires (3,520 lb.)
Electric Breakaway Kit w/ Charger
5′ Channel Ramps w/ Holder
Rear Trailer Support Jacks
6″ Channel Frame & Tongue
3″ Channel Crossmembers 16″ on Center
2″ Treated Pine Lumber Deck
102 Wide Deck
Sealed Wire Harness w/ 7-Way RV Plug
Sand Blasted, Acid Washed, Powder Coated
Fender Rating: 4,000 lbs/ea
Rubrail w/Stake Pockets
Expaned Metal Chain Tray
DOT Approved Flushmount Lifetime LED Lights
Expanded Metal Chain Tray (Bumper Pull)
GN Option Equipped with 2 Jacks
82 1/2 ” Between the Fenders
GN Option Equipped with Front Toolbox

Notes:
Triple Axle Option Available on 20′ ft and Longer Trailer is 81″ Between the Fenders Trailer will be 80″ between Fenders with 8k, 7k Hydraulic Disc Brake, and Drop Axles

Length Axles Est. Base Weight
22′ 2 – 7000 3750 lbs / 1701 kg
Weights are estimated for base trailer only, PJ Trailers makes no guarantee regarding the accuracy of estimated weights

Options
* Denotes Standard

Coupler Options
Tail Options
BP 2 5/16″ Adjustable (14,000 lb.) *
BP 2 5/16″ Adjustable Rigid Mount (25,000 lb.)
GN 2 5/16″ Round (30,000 lb.) w/ Toolbox
GN Load-Leveling 2 5/16″ Square (30,000 lb.) & Tbx
3″ Pintle Eye – Channel-mount (20,000 lb.)
GN 2 5/16″ Square (30,000 lb.) w/ Toolbox
GN 2 5/16″ Round (25,000 lb.) w/ Toolbox
GN 2 5/16″ Square (25,000 lb.) w/ Toolbox
HD 2 5/16″ Adjustable Channel Mount 3 Bolt Coupler

Axle Options
(2) 5,200# (Dexter) Electric / Spring
(2) 7,000# (Dexter) Electric / Spring *
(2) 7,000# (Dexter) Electric / Torsion
(2) 7,000# (Dexter) Elec/Hyd Disk (1,600 PSI Pump) / Spring
(3) 7,000# (Dexter) Electric / Spring
(3) 7,000# (Dexter) Elec/Hyd Disk (1,600 PSI Pump) / Spring
(2) 7,000# Load Range G 14ply Tires (Dexter Electric / Spring
(2) 7,000# Load Range G 14ply Tires (Dexter Electric / Torsion
(3) 7,000# Load Range G 14ply Tires (Dexter Electric / Spring
(3) 7,000# Load Range G 14ply Tires (Dexter Elec/Hyd Disk (1,600 PSI Pump) / Spring
(2) 8,000# Oil Bath Axles Load Range G Tires (Dexter) Electric / Spring
(2) 8,000# Oil Bath Axles Load Range G Tires (Dexter) Elec/Hyd Disk (1,600 PSI Pump) / Spring
(2) 8,000# Oil Bath Axles w/Single 17.5″T&W (Dexter) Elec/Hyd Disk (1,600 PSI Pump) / Spring
[S] Straight deck w/ 5′ Slide-in Ramps *
[A] 2′ Dovetail w/ 5′ Slide-in Ramps
[B] 2′ Dovetail w/ 5′ Fold-up Ramps
[C] Straight deck w/ 5′ Fold-up Ramps
[D] 2′ Dovetail w/ 31×66 HD Fold-up Ramps
[E] 4′ Dovetail w/ 5′ Slide-in Ramps
[F] 4′ Dovetail w/ 5′ Fold-up Ramps
[G] 2′ Dovetail w/ 3 5′ Fold-up Ramps
[H] Straight Deck w/ 4′ Heavy Duty Fold-up Gate
[J] 2′ Dovetail w/ 4′ Heavy Duty Fold-up Gate
[K] 2′ Dovetail w/ Split Heavy Duty Gate
[M] 2′ Dovetail w/ 5′ Dbl Hinge Fold-up Ramps
[N] 2′ Dovetail w/ 5′ Rear Slide-in Ramps
[P] 4′ Dovetail w/ 5′ Rear Slide-in Ramps
[R] Straight Deck w/ Rear Slide-in Ramps
[T] Straight deck w/ 31×66 HD Fold-up Ramps
[U] 4′ Dovetail w/ Split Heavy Duty Gate
[V] 4′ Dovetail w/ 31×66 HD Fold-up Ramps
[W] 4′ Dovetail w/ 5′ Dbl Hinge Fold-up Ramps
[X] Straight deck w/ 3 5′ Fold-up Ramps

Color Options
Code Color
[K] Black Powder coat *
[Y] Equipment Yellow Powder coat
[G] Grey Powder coat
[R] Red Powder coat
[J] Tractor Green Powder coat (Ohio Only)
[N] Tractor Orange (OHIO ONLY)
[W] White Powde coat

Other Options
View our options page

[-BWFL] Blackwood Lumber Full Deck
[-BWOT] Blackwood Lumber Outer Deck
[-CP08] Upgrade to 8 Hole Channel Adjustable Coupler
[-EL01] Add 7-Way RV Plug to Rear Bumper
[-GT10] Ramp Gate Transition Lip
[-LT10] GN Light Bar w/4 Lights (GN Only)
[-SEM3] 2 3/8″ Removable +Pipe top w/Expanded Metal Sides
[-ST05 Spare Tire and Mount (BP) 215/75/R17.5
[-TB03] Top Riser Toolbox
[0] Cold Weather Wiring Harness (7-Way RV)
[2] 2nd Jack (Bumper Pull)
[4] Plate for Winch
[6] 6″ Taller GN Riser
[7] Douglas Fir Lumber
[8] ¼” Diamond Plate Steel Floor w/ 4 D-Rings
[9] 9,990 G.V.W.R.
[C] 12″oc Cross members
[D] 1 Pair D-Rings
[E] Rough Oak Floor
[H] Receiver Hitch
[M] 2 3/8″ Removable Pipe top Side rails w/4 Stk Pockets
[P] 11ga (1/8″) Diamond Plate Steel Floor w/ 4 D-Rings
[Q] Front Toolbox (Bumper Pull)
[S] Mount Only for Spare Tire
[T] Spare Tire and Mount (Bumper Pull)
[U] Deck on the Neck (GN Only)
[V] Rear Trailer Support Jacks
[W] Warn M12000 Winch w/ Plate, Batt, & Frt Toolbox
[X] 2-speed Jack (12,000 lb.)
[Z] 3″ X 3″ Removable Square Tubing Top Rail
= Most Popular Options

Accessories
– Stake Pocket D-rings
– Stake Pocket Spare Tire Mount

6″ Channel Super-Wide (B6) Parts Guide
Model Part Description Category Part Number
B6 7,000# Electric / Spring (Axle Brake 70865E-ST-EZ 95×80) AXLE 110127
B6 Reflector Tape, Conspicuity R&W BODY 170237
B6 Coupler,14K 2-5/16″ Adj. BULLDOG COUPLER 140201
B6 Bracket Weld-on – 3/8″ Safety Chain (gooseneck )HARDWARE 180411
B6 Bracket Weld-on 5/16″ Safety Chain (bumper pull) HARDWARE 180410
B6 Bracket Weld-on – 3/8″ Safety Chain (with 8k axles) HARDWARE 180411
B6 Bracket Weld-on – 3/8″ Safety Chain (bumper pull/with triple axle) HARDWARE 180411
B6 Jack 12K Drop leg SW GN JACK 140102
B6 Rear Support Jack (Option) JACK 140100
B6 Light Kit LED for 6″ & 8″ Car hauler LIGHTING 170504
B6 Ramp (fold-up) w/Adj. Knee (Fold-up Ramps) RAMPS 160244
B6 Ramp 3″ Channel 12″x60″ C5 & C6 Paris (Slide-in Ramps) RAMPS 160205
B6 Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
B6 Equalizer 7K QRG (12″) SUSPENSION 120216
B6 U-Bolt Kit 3″ Rd. for 5.2-7K SUSPENSION 120301
B6 Hanger Front 7K Slipper SUSPENSION 120116
B6 Hanger Center 7K Slipper SUSPENSION 120115
B6 Hanger Rear 7K Slipper SUSPENSION 120117
B6 Hanger Kt Tandem Axle Slipper 52/7k SUSPENSION 120112
B6 Lock Nut for 7K Eq Bolt 7/8″ SUSPENSION 120218
B6 Bolt Equal’r 7/8″x4.75″ Slipper 7K SUSPENSION 120119
B6 Bolt, Hanger 9/16×3.5″ Slipper 7K SUSPENSION 120118
B6 Lock Nut for hanger bolt 9/16″ SUSPENSION 120311
B6 Tire ST235/80R16 Radial LR-E TIRE 130103
B6 Tire&Whl 235/80R16 on 865 White spk (7000 lb axle) TIRE & WHEEL 130205
B6 16″ White Spoke Wheels w/ 8 on 6.5″ (7000 lb axle) WHEEL 30303
