2019 Brute 27′ + 5′ Gooseneck Equipment Trailer *25K GVWR* – $8699

Description

Redline Trailer Sales
Ask for: Zack, Alesia, or Aaron
☎ (816) 432-2502
20951 State Route K ST Joseph, MO 64505

Enter this link to see more images plus all other inventory we have available:
http://lyv.cc/JX6EL

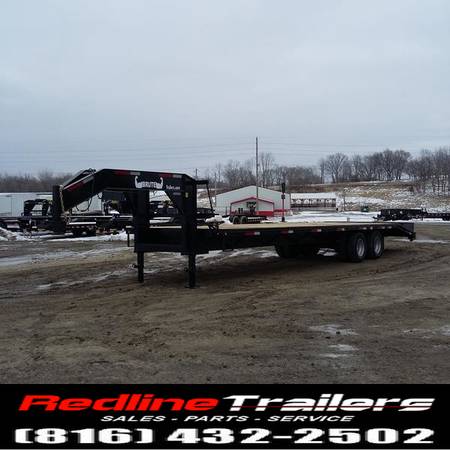

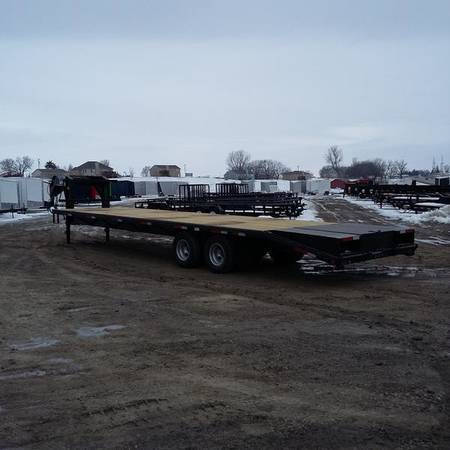

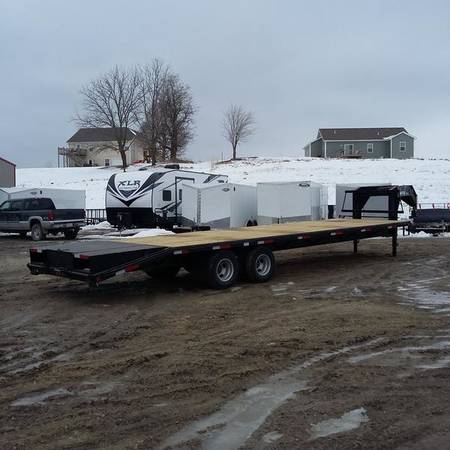

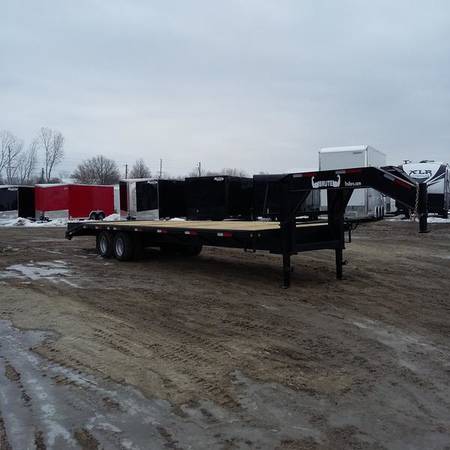

2019 Brute 27′ + 5′ Gooseneck Equipment Trailer *25K GVWR*

Price: $8,699.00

Year: 2019
Make: Brute
Model: 27′ + 5′ Gooseneck Equipment Trailer *25K GVWR*
Stock Number: 3307
Condition: New

Description:

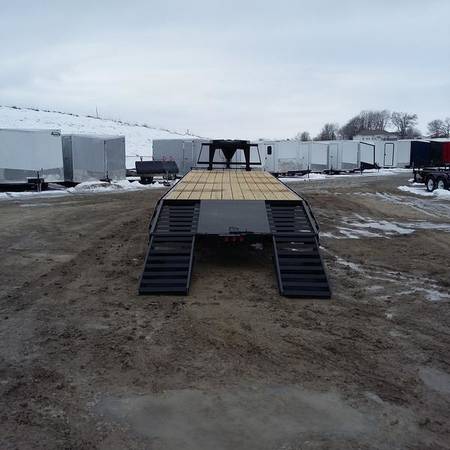

GNHD-32 32’ gooseneck trailer with 27’ flat deck, 5′ self cleaning dovetail with spring load flip over ramps with the cleats inverted (upside down V) when loading. May be a little thing but this position is 40% stronger than most others ramps cleats that are the opposite (but their way is quicker). 102” wide.
*Department of Transportation Registered, listed with Society of Automotive Engineers (SAE)
*Main frame 12”X 19 lb/foot ibeam steel, gooseneck is 12”I-beam. Tail frame is 12” Ibeam, Tail board is heavy channel.
*25,000GVW when using 10k axles.
*All butt joints on frame are overlaminated with 1/4” plate welded in place (this doubles the strength of all butt joints)
*Welds, magnafluxed for integrity, zero porosity (semi trailer mfg’s do this by DOT laws, we do it for the best trailer)
*Frame cross members are 12” Ibeam
* Torque tube for left to right stability.
*Dual assist springs on ramps help both up and down.
*NEW 3” RECTANGULAR TUBING Deck cross members on 16” centers. Much stronger than 3” channel and used as a electrical raceway to keep wires out of the weather.
*Side cap rails are heavy gauge 5″ channel. Our sealed wire harness is further protected from weather, mud, ice etc.
*Knee bracing is standard.
*Treated #2 select southern yellow pine deck on flat
* Decks are screwed at every 3rd crossmember, (other trailer companies go every 6th crossmember) 2 per board at that point, splices have double channel underneath for proper support at the joint.
*Deck screws are 5/16” cadmium plated, not the typical ¼” black coated
*Deck height with 10K axles is 37.5” (LOPRO is available).
*2” x 3/8” rub rail with stake pockets on 24” centers.
*Dual single speed Bulldog brand12K Jacks bolt on, not weld on.
*Bulldog adjustable gooseneck coupler rated at 25,000lbs (gives trailer a 25k GVW)
*Dexter tandem dual oil bath axles 10K each with electric brakes on all axles, axles are 42.25” center to center. We also provide standard self-adjusting brakes; other trailer builders don’t order this feature.
*Dexter heavy duty adjustable suspension (alignable if ever needed, e.g., you hit a curb and bend a hanger).
*Heavier 12 gauge wire for brakes versus 16 gauge on all other competitors. (Dexter requirement) Trailer will stop in 45% less distance than trailers using16 gauge brake wire.
*100% sealed wire harness with o-ring seals. 100% water proof
*Dual Budd style wheels 235x80x16” radial 10 ply tires
*Electronic breakaway control
*Sealed beam tail and clearance lights mounted in rubber grommets.
*Primed and Painted with Sherwin Williams Urethane based automotive finishes (Urethane has 4 times the life of the gloss and is much harder). Primer is Phosphate based red oxide to eliminate rust. Our Urethane paint is a $75/gallon, all others in Texas Oklahoma use a $17/gallon alkyd/acrylic blend.
**1 Coat of primer and 2 coats of paint, complete underneath of trailer is painted. (Other trailer companies to save money will only prime underneath, we paint it all.)
*DOT approved reflective tape
*Standard empty weight is approximately 7200lbs (can vary due to moisture content of wood)
