2019 Other RF16 Vending / Concession Trailer – $46750

Description

16′ BASE 1D C
DESCRIPTION

Trailer
8.5 x 16 FT Custom Mobile Kitchen Trailer
7′ Interior Height (approx.)
Price Includes Labor & Material Costs.
Build to National Codes & Regulations.
Axles Tandem 5200-lb Rockwell spring axles with
electric self- adjusting drum brakes
Tires ST225/75/R 15 LRE
15×6-6-5.5 Black Liger Aluminum Wheel with
open Stainless Center Cap (1/2″ Chrome Lug Nut
with ¾” HEX)
Suspension Equi-Flex Rubberized Equalizer System
Frame Chassis 2″ x 6″ ¼” Steel Box Tube frame
Cross Members 6″ Custom Cross Members 16″ O.C.
Tongue 2″ x 6″ Triple Tube Tongue inset 60″ to 2″x6″
Cross Member Center Beam
Coupler 2-5/16″ Adjustable Coupler.
Tongue Jack Electric Tongue Jack 4000 lb.
Breakaway Curt Breakaway kit with LED indicator light,
battery and recharger
Chains Link-Lock chain system with Grade 70 18,000lb
chains
Wire Harness LaVanture 7 Way plug with parking station
Tongue Wrap Expanded Steel Sheet
Roof System 4″ Custom Steel Joists 16″ O.C. with built in
electrical chase system
Roof Decking ½” Plywood Decking, total walk on roof
Walls 2″ x 1″ Tube Steel 16″ O.C. (Double Welds)
Corners 3.5″ x 5″ Steel Corners for structural Frame
¾” Plywood with Tyvek waterproof membrane
between frame and wood
Interior wall & Ceiling ½” Plywood walls and Ceiling
Insulation (EcoFoil) Radiant Insulation on Walls and Ceiling
Flooring Solid Sheet Rubber Tread Plate Flooring
Interior Finish 0.030 White Aluminum Walls and Ceiling
Trim Interior Aluminum angle trim with color matched coving
panels along the ceiling and wall corners
Exterior Finish 0.030-0.040 Color (TBD) Aluminum Panels
(Semi-Screwless Exterior) Floating Panels with
Locktite adhesive systems.
Trim Exterior Aluminum Exterior Trim (Black)
Concession Window 3′ x 5′ concession window with horizontal
sliding glass and screens. With gas assisted
awning doors and locks.
Concession Window 3′ x 3′ concession window with horizontal
sliding glass and screens. With gas assisted
awning doors and locks.
Door 36″ x 76″ Door color matched to trailer, single
lock
Step RV-Style retractable step
Handrail RV-Style hand rail guard
Electrical Pkg. 100-amp Main Breaker Panel, 16 circuits with
20-amp breakers. Each circuit is a home run
with 12-gauge wire and 20-amp 110-volt
receptacles @ All Required Equipment. With
GFCI receptacles at all tables.
12 Volt System 12 Volt Fuse panel with 55 amp 110/12v
Converter for 12v system inset with access panel
Shoreline 25′ Shore Line with 220v/50AMP Motto Plug.
Dog-bone 50-amp to 15-amp Shore line Dog-bone
Interior Lights 4′ LED Flush-mount Wrap-around Lights, 2900
Lumens each
Dome Light 12v Dome Light with switch for travel
Exterior Lights Clear LED running lights both amber and red,
Clear Turn/Stop lights, Clear Marker light to match.
Lights Concession (2) LED Concession Lights Installed at both Top
Corners of Concession Window with switch
Propane Rack Aluminum lockable propane racks setup for 100-
lb propane tanks

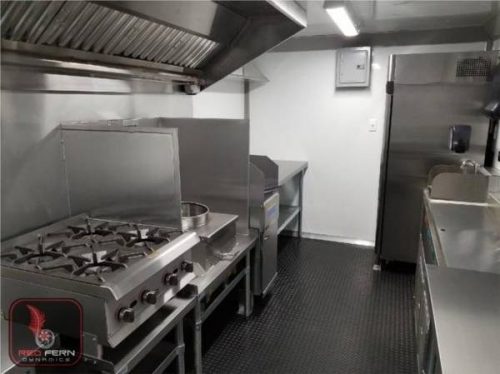

Hood NFPA Type 1 Hood 88″ with NFPA Grease Filters
Fire Wall Stainless Steel panels with concrete fire board
under to match the hood length
Exhaust NFPA Grease Approved Up-Blast Exhaust System
on independent switch sized for cook line
Make up Air Makeup air from Patent Pending Soffit Vent and
Gravity Air Vent
Gas System Black Iron Gas line system with MASTER
SHUTOFF at tank rack and union fittings for
maintenance. Gas manifold under trailer and
shutoffs for each piece of equipment inside.
Gas Lines NSF Dormont Gas lines sized for each piece of
equipment. (Yellow) for permanent equipment
Concession Counter Folding Heavy Duty Exterior Serving Counter at
window color matched to trailer
Sink System NSF 3 Bay Sink with drain boards (corner) and
Hand Sink with splash guard.
Water Lines Pex Color Coded water lines with sink shutoffs
and Stainless-Steel Braided connector lines.
Exterior low point drains are provided.
Water Pump 12v “Flowjet” water pump with SS flex lines
Water Tanks NSF 30-Gal Fresh Water Tank with City Water
Fill with backflow valve and exterior drain
Water Tanks 50-Gal Gray Water underbelly tanks with 1″
globe valve drain
Water Heater Nautilus On-Demand LP Hot water heater
A/C System 15,000 BTU A/C system on wall switch
Work/Equip Tables Stainless Steel work tables with lower shelf as
design shows
Arctic Air AR23 Commercial Refrigerator
Deli Prep Arctic Air AST28R 29″ Deli Prep
Steam Table Servlt 2 EST- 2WE Well Electric Steam Table
Range Oven CPG S24 4 Eye Range Oven
Flattop Griddle CPG G24T 24″ Flattop Griddle
Fryer Pitco 40-lb double basket fryer 4 tube
CALL US (800)792-1027

– Axles: 2
– Construction: Steel Frame Aluminum
– Pull Type: Bumper
– Roof Type: Flat
– Nose Type: Flat
