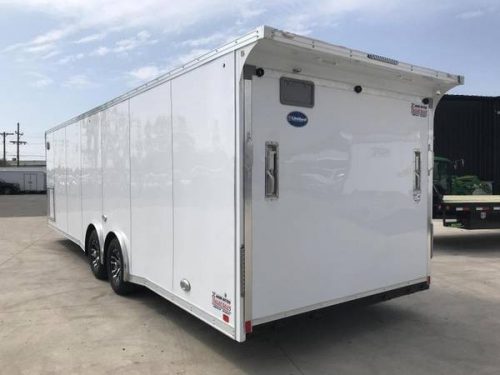

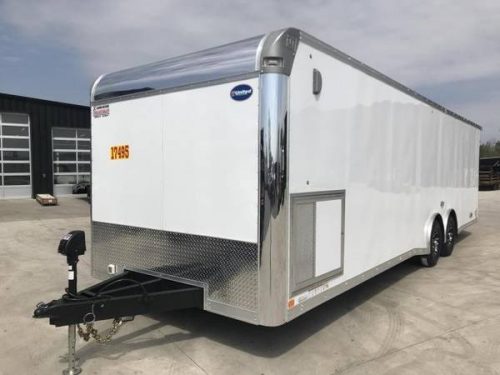

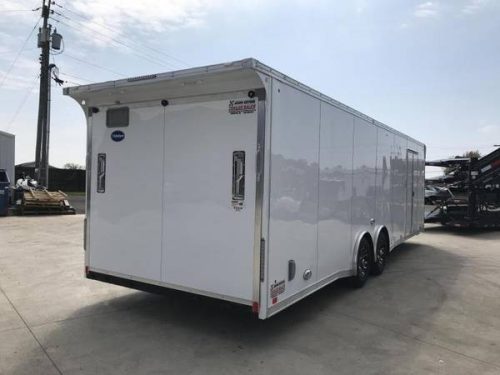

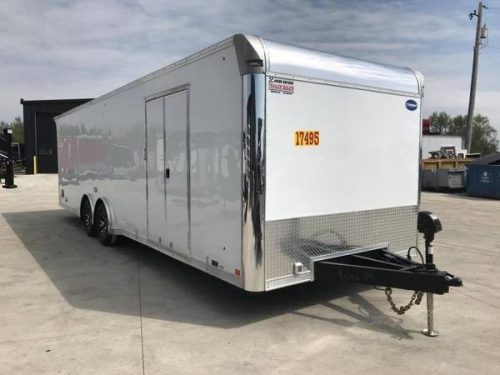

2019 United Trailer GEN 4- 8.5×28 Enclosed Race Trailer….Stock#UN-16 – $17495

Description

2019 United Trailer GEN 4- 8.5×28 Enclosed Race Trailer….Stock#UN-166234

Specifications:

MODEL-GEN#4-8.528TA52-T
SHIPPING WEIGHT 5840#
GVWR 9990#

HEIGHT

STANDARD HEIGHT – 6ft-6in INTERIOR HEIGHT

AXLE

2-5200# ELEC BRAKE AXLES -6in DROP
1-TANDEM SPREAD AXLES – 5in SPREAD

TIRES

4-UPGRADE ST235/80R/16E; RADIAL TIRES
ALUM WHEELS

HITCH

7-WAY MOLDED PLUG
BREAKAWAY KIT W/CHARGER
2 5/16in COUPLER
ELECTRIC JACK (BATTERY NOT INCLUDED)
2 SAFETY CHAINS
THIRD MEMBER TONGUE

FRAME

BATTERY BOX RECESSED 16inX10in 12in DEEP
BEAVERTAIL
CORNER POSTS- 2in WIDE CORNER POSTS
16in ON CENTER CROSSMEMBERS
8-HEAVY DUTY D-RINGS
8in I-BEAM
REAR WING
24in O/C ROOF BOWS
SPARE TIRE WELL IN FLOOR
URS STYLE FRONT W/CASTINGS
16in O/C SIDEWALL POSTS
WINCH PLATE
1-ROOF VENT (BRACED & WIRED FOR AC)
TSR 175 SIDEWALL VENTS

INTERIOR

WHITE VINYL CEILING
WALLS COVE TRIM
8-HEAVY DUTY D-RINGS
3/4in PLYWOOD FLOOR
FINISHED FLOOR (RAISED COIN BLACK)
WALL 5.2MM WHITE VINYL WALL LINER
36in TALL CARPETED WALL (MARINE GRADE)

12 VOLT ELECTRICAL

BATTERY – 12V DEEP CYCLE W/BOX
1-CARBON MONOXIDE DETECTOR (BATTERY OPERATED)
8-3in ROUND INTERIOR LAMPS W/18 LED
3- LED 3in ROUND INTERIOR LAMP W/ 18 LED
2-LED LOADING LIGHTS SURFACE MOUNT
LED CLEARANCE & TAIL LIGHTS
3-12IN CLEAR STRIP LIGHTS
1 PAIR LIGHT – LED BACK UP (DOCKING) LIGHT
6 LED RECESSED CLEARANCE LIGHTS
1 PAIR LIGHTS – MID SHIP TURN SIGNAL LED AMBER
5 – LIGHTS LED ILL10CCB SERIES DOME LIGHTS 10 LED
1 PAIR LIGHTS – LED TAIL LIGHT SURFACE MOUNT W/CHROME RING
4-12V WALL SWITCH

EXTERIOR

.030 SMOOTH ALUMINUM- WHITE
4in BOTTOM MOLDING
24in ATP STONE GUARD
BRIGHT ALUMINUM FRONT CORNERS
BRIGHT ALUMINUM BETWEEN CAST CORNERS
CAST CORNERS – UNPOLISHED
4 – 23in SINGLE WHEEL FLARE FOR SPREAD AXLE CONFIGURATION 2X36 1/2X23X090 ALUMINUM
GLUED EXTERIOR
REAR WING
ALL ALUMINUM SEAMLESS ROOF
HIDE ROOF WITH LUAN

DOOR

48inX72in SIDE DOUBLE DOOR RV LOCK
1 FT ALUMINUM FLAP
BEAVERTAIL RAMP DOOR W/SPRING – 6FT BEAVERTAIL
1 SET 2in CORNER POST
2- DOOR HOLD BACK ALUMINUM HEAVY DUTY 4in
GENERATOR DOOR 36in X 30in
RECESSED CAMLOCKS (STAINLESS STEEL)

CABINETS

DELUXE CABINET PACKAGE

ELECTRICAL

1-110V EXTERIOR GFI RECEPT
4-110V INTERIOR DUPLEX RECEPT
50 AMP PANEL BOX W/50 AMP MOTOR BASE
ELECTRICAL BOXES, SWITCHES & RECEPTS

RACERS PACKAGE
