2019 UNITED XLTV 8.5X27 STANDARD HEIGHT…UN-166654 – $7495

Description

2019 UNITED XLTV 8.5X27 STANDARD HEIGHT…UN-166654

SHIPPING WT: 3920#
GVWR: 9800#
MODEL XLTV-8.527TA50-S

HEIGHT
STANDARD HEIGHT (6ft-6in INTERIOR HEIGHT)

AXLES
2-5000# ELECTRIC BRAKE AXLES;

TIRES
4-ST225/75R-15in RADIAL TIRES; ALUMINUM BLACK & SILVER WHEELS

HITCH
7-WAY MOLDED PLUG
BREAKAWAY KIT W/CHARGER
2-5/16in COUPLER
JACK – 7000# DROP LEG, REMOVALBLE
2 – SAFETY CHAINS
1FT EXTENDED TONGUE WITH 3rd MEMBER

FRAME
36IN WEDGE NOSE
BEAVERTAIL
CORNER POSTS – 2in WIDE CORNER POSTS
16in O.C. CROSSMEMBERS
4-D RINGS HEAVY DUTY
6In I-BEAM FRAME
ROOF BOWS 24in O.C.
WALL POST 16in O.C.
SLANT NOSE NEW STYLE

VENTS
VENT ROOF VENT (NON POWER)
TSR-175 SIDEWALL VENT

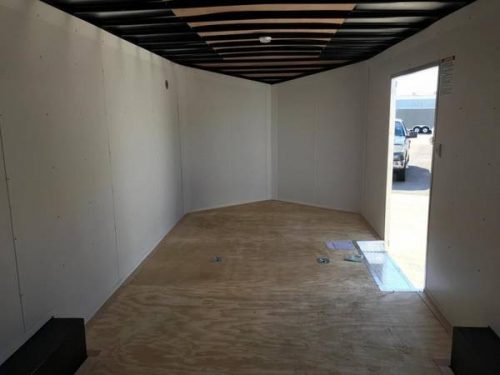

INTERIOR
BOX OFF SIDE WALLS
4-HEAVY DUTY D-RINGS
5.2MM WHITE VINYL WALL LINER
3/4 PLYWOOD FLOOR

12 VOLT ELECTRICAL
1-SET LED CLEARANCE & TAIL LIGHTS
2 LIGHTS – 12 VOLT DOME LIGHTS
1-PR LED TAIL LIGHT SURFACE MOUNT W/CHROME RING
1-12V WALL SWITCH

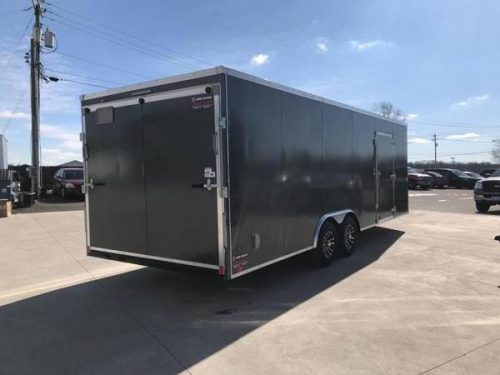

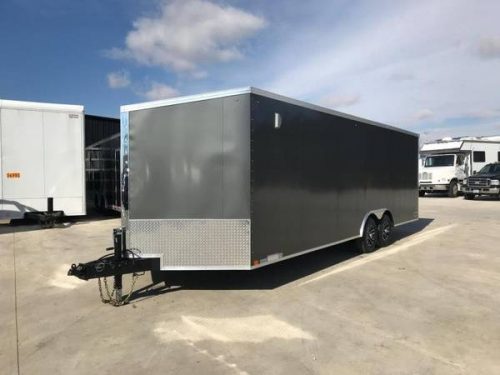

EXTERIOR
.030 SMOOTH ALUM EXTERIOR SIDING- CHARCOAL
GLUED EXTERIOR
BRIGHT FRONT NOSE
24in ATP TALL STONEGUARD
2- FLARES – 1IN ALUMINUM
ALUM SEAMLESS ROOF
HIDE ROOF WITH LUAN DOWN CENTER ONLY
SLANT NOSE

DOOR
48inx 72in SIDE BAR LOCK
BEAVERTAIL RAMP DOOR W/SPRING
RAMP DOOR W/SPRING
CORNER POST 2in CORNER POSTS
FLUSH LOCK – RV LOCK
