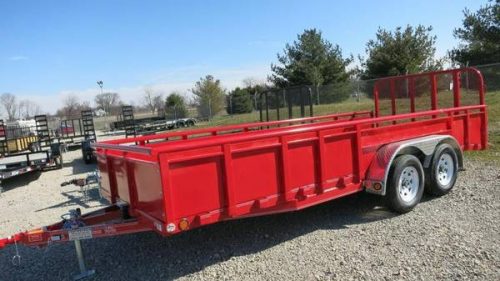

PJ Trailers 7′ x 18′ Utility Trailer w/ Fold Up Gate – $3499

Description

ul: 83″ Tandem Axle Channel Utility
2: BP 2″ A-Frame
18: 18ft
32cs: 2 – 3,500# (Dexter) One Electric / Spring

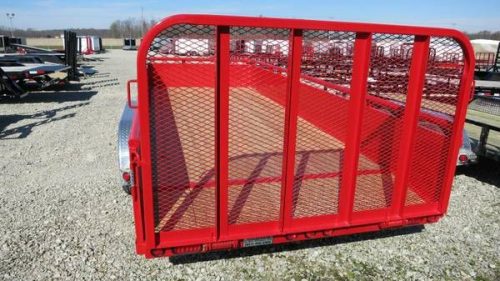

g: Straight Deck w/ 4′ Fold-up Gate
k: red Powder Coat
z: 22″ Solid Metal Sides w/ 2″ pipe-top

INTERNET PRICES ARE CASH OR OHIO CHECK.

Standard Features
2,990 G.V.W.R.
3,500 x 1 G.A.W.R.
2″ Ball Coupler
Safety Chains
1 – Pipe Mount Swivel Jack (2,000 lb.)
1 – Dexter E- Z lube Idler Axle (3,500 lb.)
4 Leaf Double-eye Spring Suspension
2 – NEW 15″ White Spoke Wheels
2 – Provider ST205/75R15 Radial Tires (1,820 lb.)
Stake Pockets
9″ x 33″ Treadplate Removable Aluminum Fenders
4″ Channel Frame & Tongue
2 1/2″ x 2 1/2″ x 3/16″ Angle Crossmembers
2″ x 2″ Removable Side Rail
2″ x 2″ Top Rail
2″ Treated Pine Lumber Deck
83″ Wide Deck
DOT Approved Flushmount Lights
Sealed Wire Harness
Sand Blasted, Acid Washed, Powder Coated

Notes:
16′ and up must be tandem axle 2 5,200 lb axle option on 16′ and up 2 5,200 lb axle must order 16″ oc Option *** MAX GVWR 10,000 with Correct Options *** ***Drop and Torsion Axle options will come with Steel Fender***

LengthAxlesEst. Base Weight
10’1 – 35001000 lbs / 454 kg
12’1 – 35001100 lbs / 499 kg
14’1 – 35001240 lbs / 562 kg
14’2 – 35001480 lbs / 671 kg
16’2 – 35001540 lbs / 699 kg
18’2 – 35001740 lbs / 789 kg
Weights are estimated for base trailer only, PJ Trailers makes no guarantee regarding the accuracy of estimated weights

Options
* Denotes Standard

Coupler Options
Tail Options
BP 2″ A-Frame *
BP 2 5/16″ A-Frame
BP 2″ Adjustable
BP 2 5/16″ Adjustable
BP 2″ Atwood Style A-Frame Coupler
BP 2 5/16″ Atwood Style A-Frame Coupler
3″ Pintle Eye – Channel-mount

Axle Options
(1) 3,500# (Dexter) Idler / Spring *
(1) 3,500# (Dexter) Idler / Torsion
(1) 3,500# (Dexter) Electric / Drop Axle
(1) 3,500# (Dexter) Electric / Spring
(1) 3,500# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(2) 3,500# (Dexter) One Electric / Drop Axle
(2) 3,500# (Dexter) One Electric / Spring
(2) 3,500# (Dexter) One Electric / Torsion
(2) 3,500# (Dexter) Idler / Spring
(2) 3,500# (Dexter) Electric / Drop Axle
(2) 3,500# (Dexter) Electric / Spring
(2) 3,500# (Dexter) Electric / Torsion
(2) 3,500# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) / Spring
(2) 3,500# (Dexter) Surge/ Hyd. Drum w/ Surge Coupler 1 Brake 1 Drag / Spring
(2) 3,500# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(1) 5,200# (Dexter) Idler / Spring
(1) 5,200# (Dexter) Electric / Drop Axle
(1) 5,200# (Dexter) Electric / Spring
(1) 5,200# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(2) 5,200# (Dexter) One Electric / Spring
(2) 5,200# (Dexter) Electric / Spring
(2) 5,200# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
[S] Straight Deck *
[2] 2′ Dovetail w/ 5′ Slide-in Ramps
[4] 4′ Dovetail w/ 5′ Slide-in Ramps
[A] 2′ Dovetail w/ 2 Fold-up Ramps
[B] 2′ Dovetail w/ 4′ Fold-up Gate
[C] Straight Deck w/ 2 Fold-up Ramps
[D] 4′ Dovetail w/ 2 Fold-up Ramps
[E] 4′ Dovetail w/ 4′ Fold-up Gate
[F] Straight Deck with Fold In Gate
[G] Straight Deck w/ 4′ Fold-up Gate
[H] Straight Deck w/ 4′ Heavy Duty Fold-up Gate
[J] 2′ Dovetail w/ 4′ Heavy Duty Fold-up Gate
[K] Straight Deck w/ Bi-Fold Gate
[M] 2′ Dovetail w/ Bi-Fold Gate
[P] 2′ Dovetail w/ Split Gate
[R] Straight Deck w/ 5′ Slide-in Ramps
[T] Tilt Deck (Single Axle Only)
[U] Straight Deck w/ Split Gate
[X] 2′ Dovetail w/ Split Heavy Duty Gate

Color Options
Code Color
[K] Black Powdercoat *
[Y] Equipment Yellow Powdercoat
[G] Grey Powdercoat
[R] Red Powdercoat
[B] Regatta Blue Powdercoat
[J] Tractor Green Powdercoat
[W] White Powdercoat

Other Options
View our options page

[-BWFL] Blackwood Lumber Full Deck
[-BWOT] Blackwood Lumber Outer Deck
[-GT10] Ramp Gate Transition Lip
[-SEM9] 3ft 12ga Solid Metal Sides
[-TB01] Front Toolbox (with 7k Jack)
[-TW05] Upgrade to 235/80 R16 on 5.2 Axles
[-WR01] Trimmer Rack Kit
[2] 2ft Expanded Metal Sides
[3] Upgrade to 225/75 R15 on 3.5k Axles
[4] 4ft Expanded Metal Sides
[5] Regular Sides w/Solid Metal
[6] Regular Sides w/Expanded Metal
[7] Upgrade to 7k Jack
[A] Side Mount ATV Ramps (12ft or Longer)
[B] 4ft Solid Metal Sides
[C] Landscape Toolbox ( must have 2ft or 4ft Sides)
[D] 1 Pair D-Rings
[F] Steel Diamond Plate Fenders
[G] 4ft Side Gate (14ft or longer)
[H] 2 ft. Side Rails ( No Mesh)
[J] LED Lights Upgrade
[M] Expanded Metal Floor
[P] 2″ Pipetop Removable Siderails
[S] 11ga Diamond Plate Steel Floor w/ 4 D-Rings
[T] Spare Tire Mount
[U] Rear Trailer Support Jacks
[V] Spare Tire and Mount
[W] 12″ oc Crossmembers
[X] 16″oc Crossmembers
[Z] 22″ Solid Metal Sides w/ 2″ pipe-top
= Most Popular Options

Accessories
– Stake Pocket D-rings
– Stake Pocket Spare Tire Mount

83″ Channel Utility (U8) Parts Guide
Model Part Description Category Part Number
UL 3,500# Idler / Spring (Axle Idler 35550 I-ST-EZ 95×80) AXLE 110104
UL Reflector Tape, Conspicuity R&W BODY 170237
UL Rear Bumper U8 w/ Ramp gate Hinges BODY 160224
UL Front Rail for U8 w/ ATV Ramps BODY 160654
UL RH Side Rail for U8 w/ ATV Ramps BODY 160655
UL LH Side Rail for U8 w/ ATV Ramps BODY 160656
UL Coupler, 2″ A-Frame Bulldog COUPLER 140200
UL Gate Assy Heavy Duty U8 83” Black GATE 160268
UL Mounting kit for U6, U7 or U8 gate GATE 160267
UL Gate 1′ side for U8 83” Black GATE 160266
UL Bracket Weld-on 5/16″ Safety Chain HARDWARE 180410
UL Rear Support Jack (Option) JACK 140100
UL Jack, 5K Pipe Mount 15″ Top wind JACK 140100
UL Tailight, 6″ Oval, Red Sealed LIGHTING 170205
UL Ramp 3″ Chnl 13″x60″ C5&C6 -Semin (Slide-in Ramps) RAMPS 160273
UL Spring Dbl.eye 4 leaf 1750# SUSPENSION 120100
UL Equalizer 3.5K Triangle Double Eye SUSPENSION 120217
UL Equalizer 7K QRG (12″) (5200 lb axles) SUSPENSION 120216
UL U-Bolt Kit 2-3/8″ Round (for 3.5k) SUSPENSION 120300
UL U-Bolt Kit 3″ Rd. for 5.2-7K (5200 lb axles) SUSPENSION 120301
UL Spring Slipper 6 leaf 4000# 7/8K (5200 lb axles) SUSPENSION 120102
UL Hanger for Front Single Axle 3.5K SUSPENSION 120142
UL Hanger for Rear Single Axle 3.5K SUSPENSION 120143
UL Hanger 2-Axle 3.5K, Frt, Ctr, Rear SUSPENSION 120145
UL Hanger Front 7K Slipper (5200 lb axles) SUSPENSION 120116
UL Hanger Center 7K Slipper (5200 lb axles) SUSPENSION 120115
UL Hanger Rear 7K Slipper (5200 lb axles) SUSPENSION 120117
UL Hanger Kit 1-Axle Dble Eye 3.5-52K SUSPENSION 120111
UL Hanger Kit 2-Axle Dbl Eye 3.5 -52K SUSPENSION 120110
UL Hanger Kt Tandem Axle Slipper 52/7k (5200 lb axles) SUSPENSION 120112
UL Bolt, Hanger 9/16×3.5″ Slipper 7K (with 5.2k axles) SUSPENSION 120118
UL Bolt Equal’r 7/8″x4.75″ Slipper 7K (with 5.2k axles) SUSPENSION 120119
UL Lock Nut for 7K Eq Bolt 7/8″ (with 5.2k axles) SUSPENSION 120218
UL Lock Nut for hanger bolt 9/16″ SUSPENSION 120311
UL Hanger Bolt 3″x9/16″ – 18 SUSPENSION 120141
UL Tire ST205/75R15 Radial LR-C TIRE 130101
UL Tire&Whl 205/75R15 on 550 white spk (3500 lb axle)TIRE & WHEEL 130200
UL 15″ white spoke Wheels w/ 5 on 5″ (3500 lb axle) WHEEL 130300
